01 / Track chain
Confirm pitch, links per chain, chain specification, mounting interfaces and standard or heavy-duty requirement.
Chain pitch & mounting guide →Track-Side Replacement Scope
Complete Track Groups for Excavators & Bulldozers
Match the chain and shoes as one assembled system. FY Machinery combines undercarriage manufacturing and international supply with confirmation of pitch, link count, shoe dimensions, grouser profile and fastening requirements.
A matched assembled system
Track Chain + Track Shoes + fastening hardware
A complete track group is a track chain with track shoes fixed to it using fastening bolts and nuts. Final configuration combines the chain specification and shoe specification, then confirms the assembled requirement.
02 / Track shoes
Confirm shoe width, plate thickness, single / double / triple grouser profile and the mounting-hole pattern.
Track Shoe measurement guide →03 / Fastening & assembly
The shoe holes must correspond to the chain holes. Confirm the bolts/nuts, assembled configuration and the number of complete groups required.
One configuration, two weight values: chain weight refers to the bare chain per chain; track group weight refers to the assembled chain with shoes and fastening hardware per group. Link count and the selected shoe configuration affect the complete requirement.
Excavator Application
Excavator Complete Track Groups
Confirm the excavator chain pitch and link count together with the shoe width, plate thickness, grouser profile and corresponding mounting holes.
View Excavator Undercarriage PartsBulldozer Application
Bulldozer Complete Track Groups
Confirm the bulldozer chain specification and shoe configuration together. The chain and shoe mounting pattern must match before the complete group is specified.
View Bulldozer Undercarriage PartsSelected track group configurations
Compare the assembled group and bare chain weights
Each configuration pairs a chain with shoes and fastening hardware. Compare both weights for the listed number of links, then confirm the shoe width, plate thickness and mounting pattern for your order.
Selected references, not the complete FY range. Pitch and dimensions are in mm. Links are counted per chain / assembled group; chain weight is kg per chain, and group weight is kg per assembled group. Final matching requires the machine, part number and drawing or measured interfaces.
Model references in the source are incomplete, so they are not published as a fitment or coverage list. The machine model remains an essential inquiry detail. Grouser type describes the shoe configuration associated with each reference; a bare chain does not include shoes.
Structure labels preserve the source terminology: Master pin (主销), Master link (主节), Insert pin (插销). Confirm the specific connection design with a drawing.
Excavator Complete Track Groups · 9 configurations
Tap a configuration to compare group and chain weights.
HWL101GA-1Pitch 101 mm · 44 linksExcavator · Triple grouser
- Assembled group
- 208 kg
- Bare chain
- 86 kg
Structure: Master pin
HWL135GA-1Pitch 135 mm · 40 linksExcavator · Triple grouser
- Assembled group
- 437 kg
- Bare chain
- 127 kg
Structure: Master pin
HWL154MAPitch 154 mm · 39 linksExcavator · Triple grouser
- Assembled group
- 413 kg
- Bare chain
- 150 kg
Structure: Master pin
HWL154MBPitch 154 mm · 41 linksExcavator · Triple grouser
- Assembled group
- 439 kg
- Bare chain
- 159 kg
Structure: Master pin
HWL175MA-1Pitch 175 mm · 41 linksExcavator · Triple grouser
- Assembled group
- 730 kg
- Bare chain
- 275 kg
Structure: Master pin
HWL190MB-1Pitch 190 mm · 44 linksExcavator · Triple grouser
- Assembled group
- 1428 kg
- Bare chain
- 496 kg
Structure: Master pin
HWL216MB-1Pitch 216 mm · 45 linksExcavator · Triple grouser
- Assembled group
- 2120 kg
- Bare chain
- 753 kg
Structure: Master pin
HWL228MAPitch 228 mm · 50 linksExcavator · Triple grouser
- Assembled group
- 2586 kg
- Bare chain
- 964 kg
Structure: Master pin
HWL260MA-1Pitch 260 mm · 51 linksExcavator · Double grouser
- Assembled group
- 4806 kg
- Bare chain
- 2066 kg
Structure: Master pin
Bulldozer Complete Track Groups · 3 configurations
Tap a configuration to compare group and chain weights.
HWL203RAPitch 203 mm · 41 linksBulldozer · Single grouser
- Assembled group
- 1532 kg
- Bare chain
- 714 kg
Structure: Master link
HWL216RAPitch 216 mm · 44 linksBulldozer · Single grouser
- Assembled group
- 2384 kg
- Bare chain
- 1206 kg
Structure: Master link
HWL228MB-1Pitch 228 mm · 41 linksBulldozer · Single grouser
- Assembled group
- 2332 kg
- Bare chain
- 1126 kg
Structure: Master pin
Confirm the chain and shoe together: pitch, link count, chain specification, shoe width, plate thickness, grouser type and matching holes. Detailed chain dimensions are available in the chain reference guide; shoe dimensions still need confirmation for the assembled order.
Compare chain dimensions →Product Media
Complete Track Groups Product Images
Machine Application

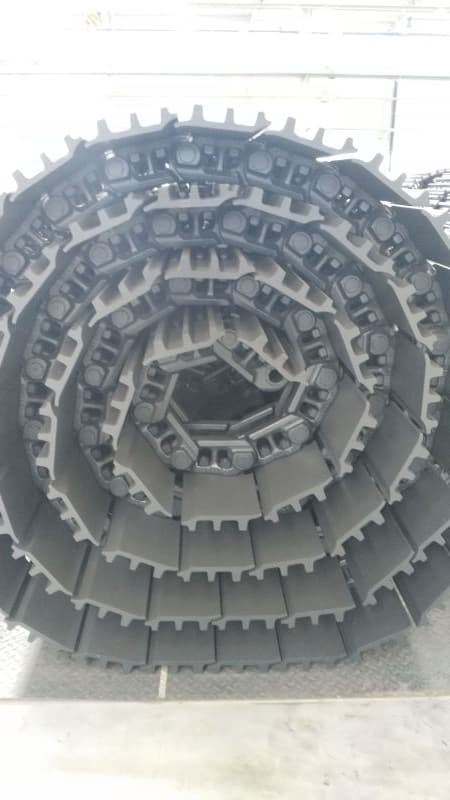

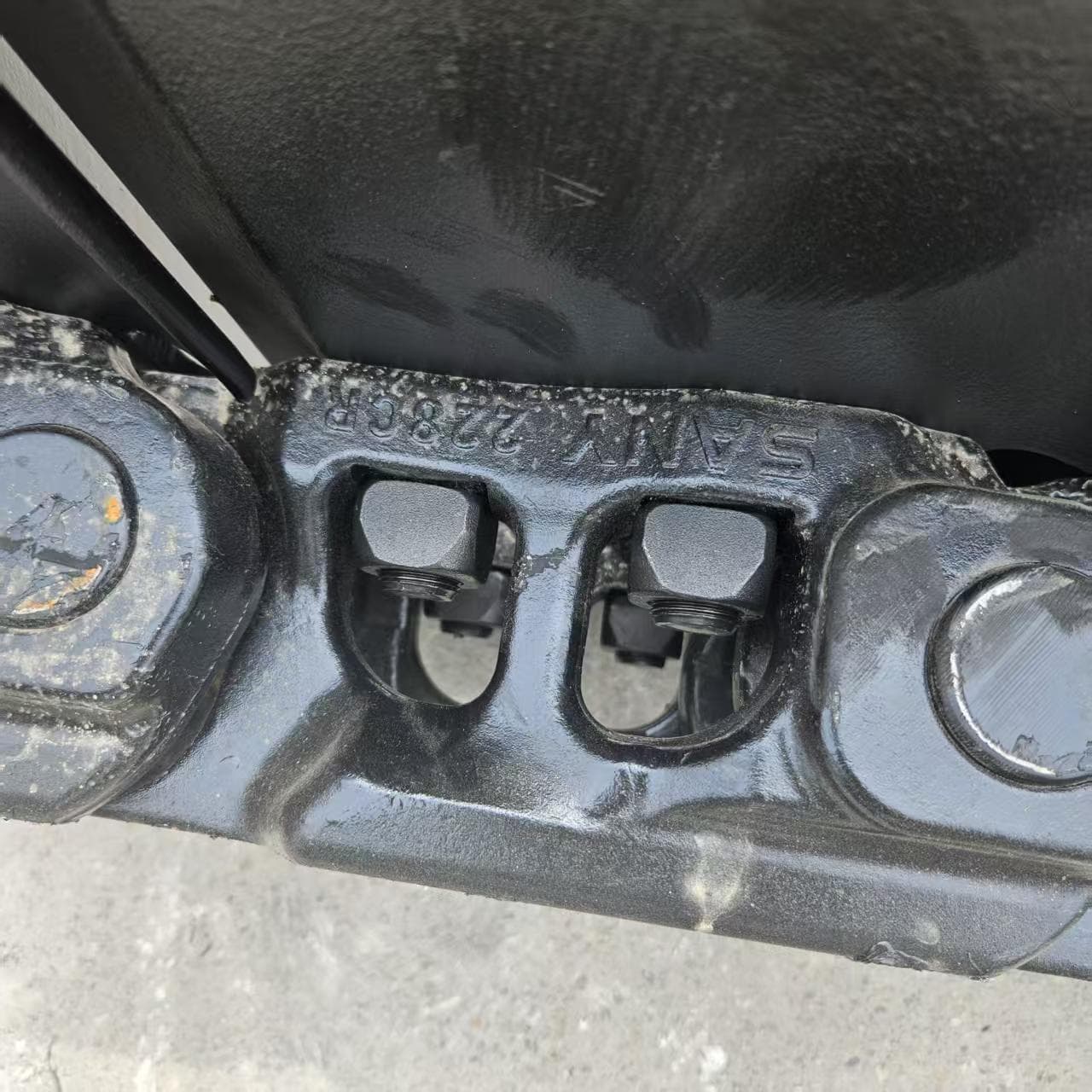

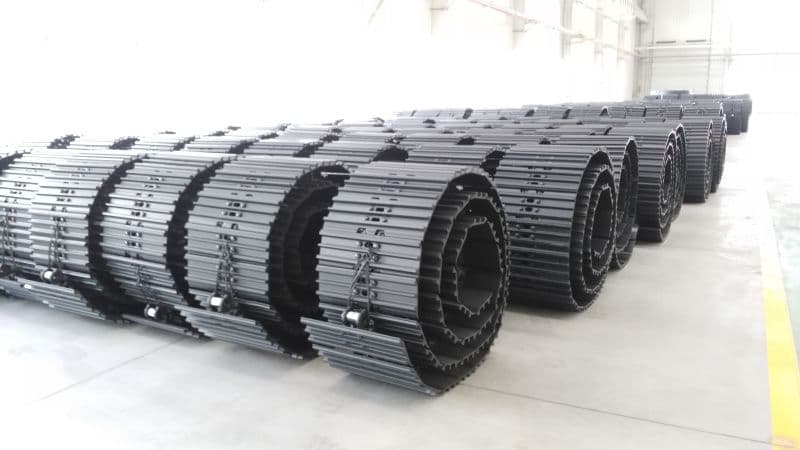

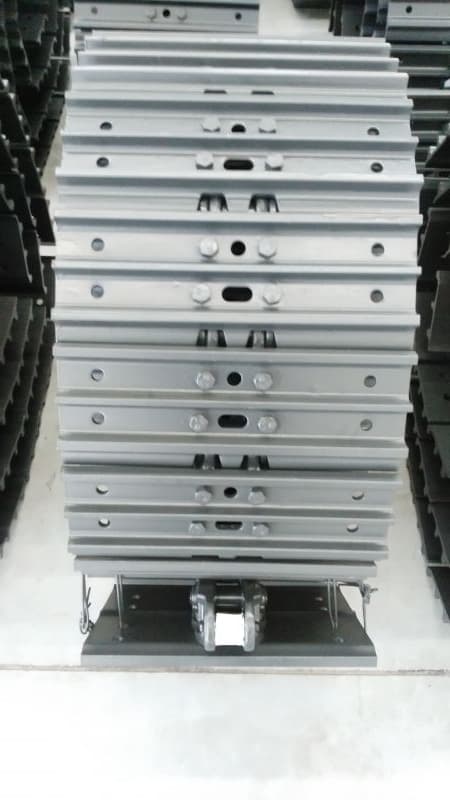

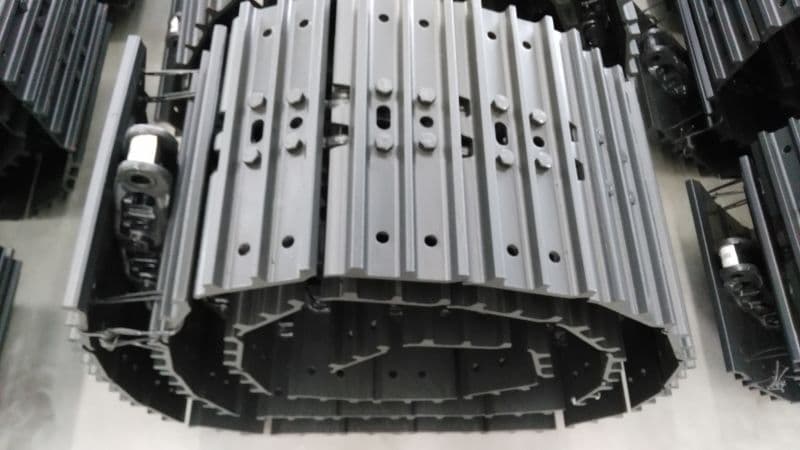

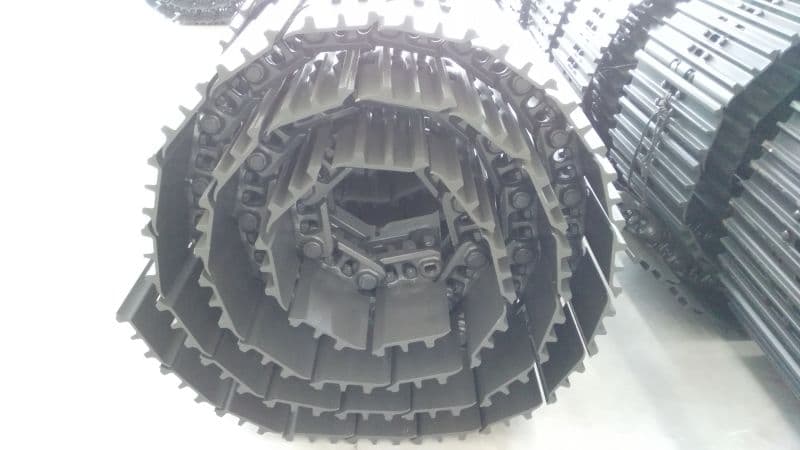

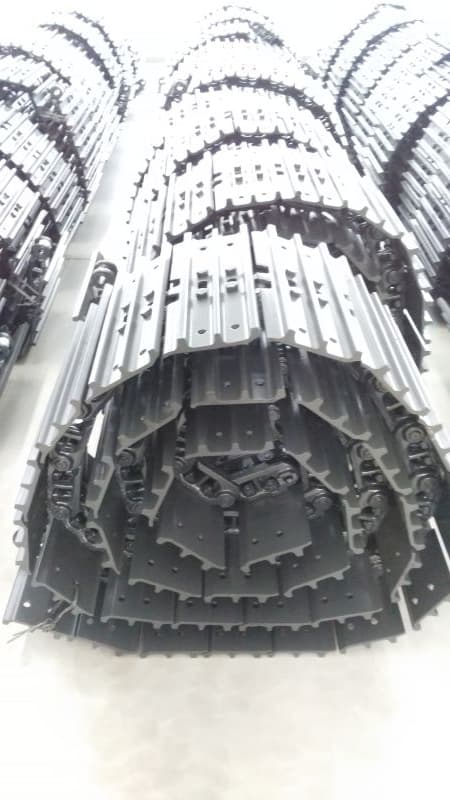

Excavator Complete Track Groups
Product Gallery
Product Details
Machine Application

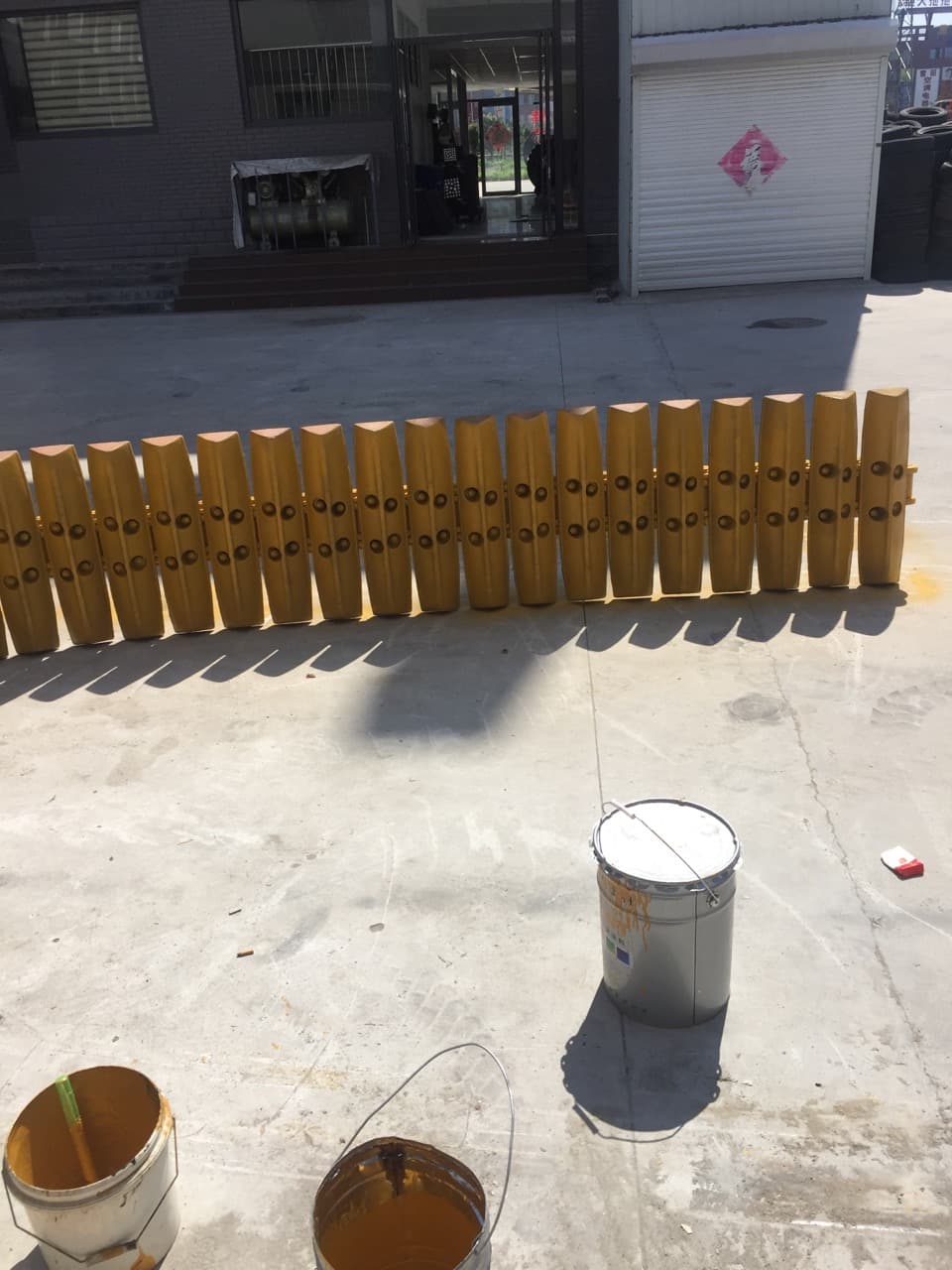

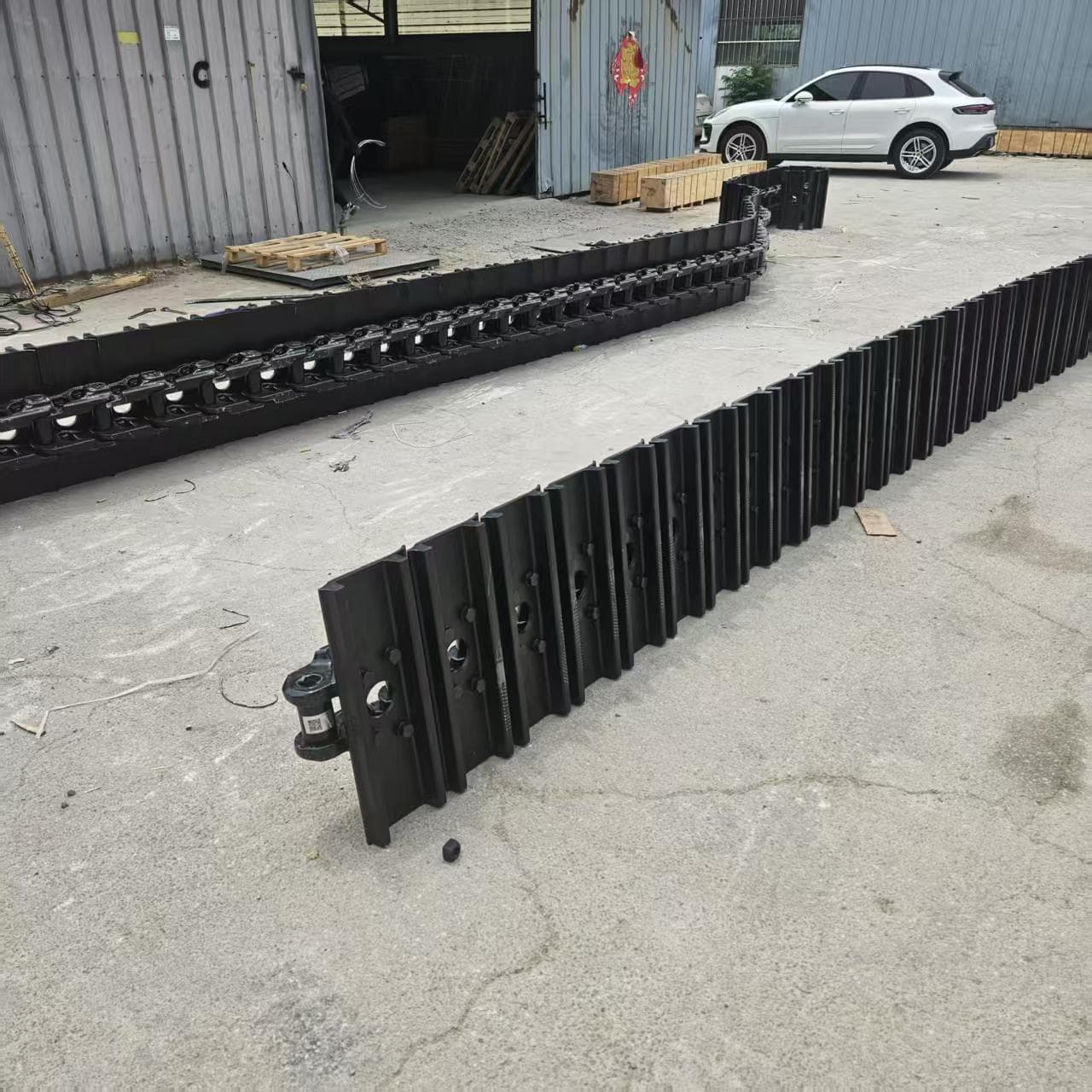

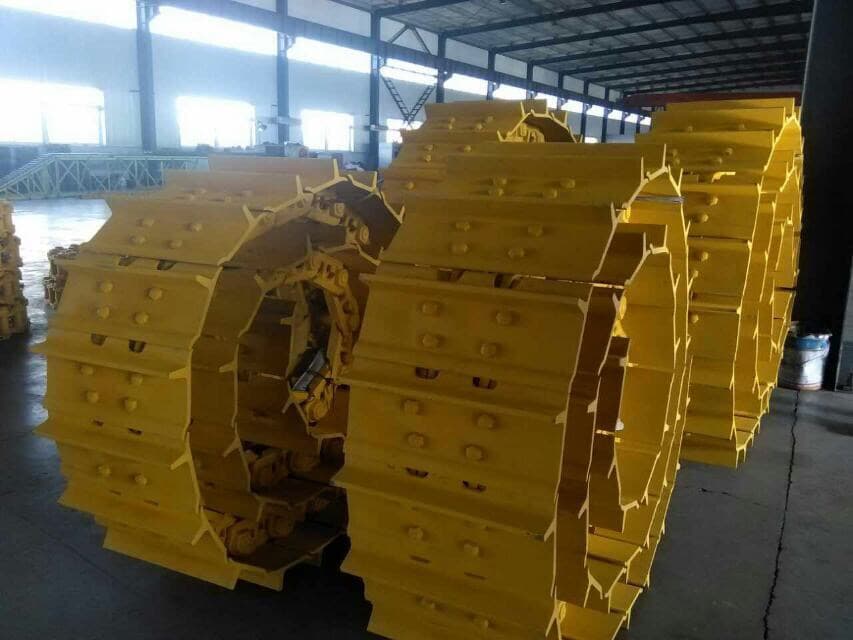

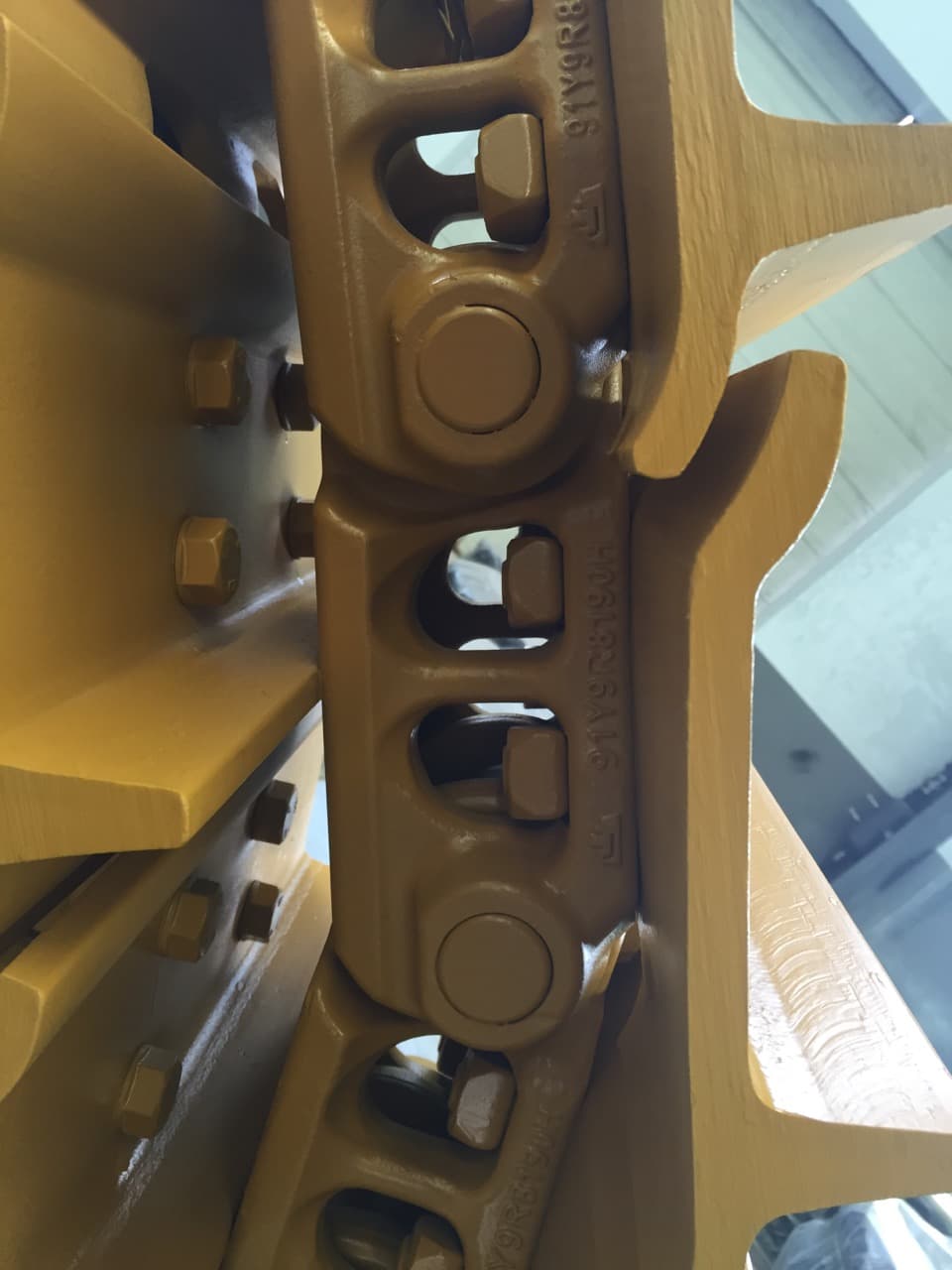

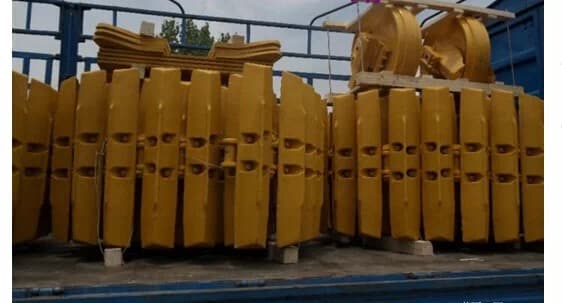

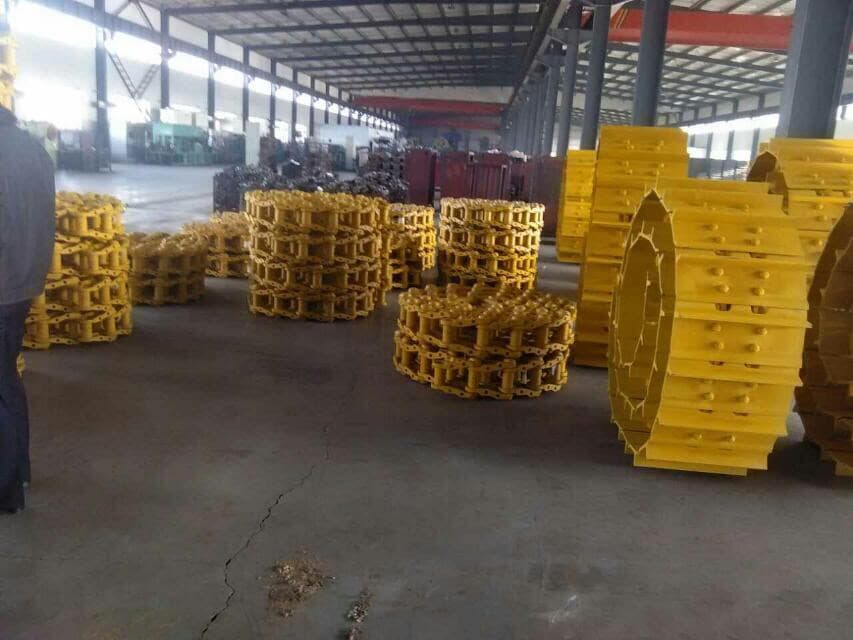

Bulldozer Complete Track Groups
Main Product View
Product Gallery
Product Details
Inspection Clues
When a wider track-side check may be useful
These visible clues can support a closer inspection of the actual machine and help define an inquiry. They are not universal wear limits or replacement thresholds.
This overview does not provide installation instructions, repair procedures, or a substitute for machine-specific service guidance and qualified technical judgment.
- Visible damage affecting the chain, shoes, connections, or another part of the requested track-side scope.
- Missing components or components that appear obviously mismatched within the existing track arrangement.
- Abnormal, uneven, or visibly irregular condition across the track chain and track shoes.
- An uneven or irregular overall track-system appearance that warrants closer qualified inspection.
- A maintenance need that appears to involve a wider connected track-side scope rather than one clearly isolated component.
Replacement Identification
How to Confirm a Complete Track Group
Confirm the chain and shoe details in the sequence below, then review them together as an assembled group. A matching pitch alone does not establish the final shoe or fastening configuration.
Machine model
Provide the machine make and complete model for the required excavator or bulldozer.
Part or assembly reference
Share the part number, assembly number or previous drawing reference when available.
Pitch & chain specification
Confirm adjacent pin-centre pitch and the chain specification, including standard or heavy-duty requirements.
Link count
Confirm links per assembled group. State the number of groups separately; link count is required for quotation.
Shoe width
Confirm the shoe dimension across the track in mm. It is separate from chain pitch.
Plate thickness
Confirm the thickness of the base plate, excluding raised grouser height.
Grouser type
Specify single, double or triple grouser, and any special shoe profile requirements.
Matching mounting pattern
Confirm the upper/lower hole centre distances, perpendicular spacing between rows and hole diameter. Chain and shoe holes must correspond.
Drawing & assembled requirement
Use a drawing for uncertain, special or precise matching. Confirm fastening bolts/nuts, assembled configuration, photos and group quantity.
B2B Supply Support
Matching, production, and order coordination
Our production and international-sales teams review the chain and shoe specifications together, confirm the assembled requirement, then coordinate quotation, production and order follow-up against that agreed configuration.
Manufacturing-backed supply
Our production and international-sales teams work together on confirmed product and assembled requirements.
Product matching
Machine details, references, photos, track-chain and track-shoe context, requested identification or interface references, assembly scope, quantity, and position details are reviewed together.
Quality and order follow-up
Confirmed product references, quantities, and agreed order requirements support practical quality and order follow-up.
Production-site visit support
Production-site visits can be coordinated where appropriate to the product, order stage, and agreed arrangement.
Related Undercarriage Parts
Track Chains
Bare linked assemblies that form the running chain path.
Track Shoes
Ground-contact components mounted to the track chain.
Track Rollers
Lower rollers supporting and guiding the loaded track path.
Carrier Rollers
Upper rollers supporting the return side of the track path.
Idlers
Components guiding the track around the undercarriage.
Sprockets & Segments
Drive components that engage the applicable track chain.
Buyer Questions
Complete Track Group FAQ
What is a complete track group?
A complete track group combines a track chain, track shoes and fastening bolts/nuts into one assembled group. It is specified by matching the chain and shoe requirements together.
Is a complete track group the same as a track chain?
A bare track chain is the linked chain without shoes. The complete track group includes the matched shoes and fastening hardware assembled with that chain.
What is the difference between group weight and chain weight?
Track chain weight is the bare chain weight per chain. Track group weight is the weight per assembled group, including the chain, shoes and fastening hardware. Compare the values for the listed configuration and link count.
Does the same pitch mean the same complete track group?
No. Chains at the same pitch can have different link and pin dimensions or mounting interfaces. Shoe width, thickness, grouser type and links per group also need confirmation.
What information is needed for a complete track group RFQ?
Provide the machine model, part number if known, pitch, chain specification, link count, shoe width, plate thickness, grouser type and matching hole pattern. Confirm the assembled scope and group quantity; send a drawing for uncertain, special or precise requirements.
Request for Quotation
Send your Complete Track Group RFQ
Include both chain and shoe information: machine model, part number, pitch, chain specification, links per group, shoe width, plate thickness, grouser type and mounting-hole pattern. Confirm fastening hardware, assembled requirements and group quantity, with photos or a drawing for final review.
